Want to streamline your labeling needs at home or business? Brother offers DK labels for a variety of applications that you can potentially maximize for many of your needs.

At enKo Products, we not only manufacture crisp and inexpensive Brother compatible DK labels but also ensure you’re using them right. In this post, we’ll discuss in-depth the properties of each DK variety and where to use them best.

Interpreting Brother’s Extensive Label DK Test

Let’s start off by examining Brother’s technical data for DK rolls. In this document officially released by the company, extensive tests were performed for each DK label type to know exactly what forces of nature it can withstand. The tests also analyzed up to what extent the labels can withstand heat, cold, rain, and indoor and outdoor conditions.

1. Temperature Resistance Test

Image Source: Freepik

In this test, we’ve determined how Brother DK labels can withstand extremely high and low temperatures from -80°C to +80°C. We’ve gathered data from three types of DK labels: Film, Paper, and 2-color paper.

Summary:

Temperature Range
Hours
DK Film
DK Paper Label
DK 2-Color Paper Label

-80°C

240

No visible deterioration

No visible deterioration

+60°C

240

No visible deterioration

No visible deterioration

A little discoloration but insignificant

+80°C

240

No visible deterioration

A little discoloration but insignificant

Faded red color

(a) DK Film

Brother DK Films is one of the most robust DK label types withstanding the highest temperature ranges and sunlight exposures. It can hold out against -80°C to +80°C without fading.

(b) Brother DK Paper Labels

It was found in this test that Brother DK tapes can withstand temperatures from -80°C to +80°C. Paper labels in particular are able to endure from -80°C to +60°C but will show minor fading in its black text at a high temperature of +80°C.

(c) DK 2-Color Paper Labels

For two-color paper labels, they are able to remain blemish-free from -80°C to +25°C. It will only start to show discoloration when it reaches a temperature of +60°C.

(d) Best Applications

  • DK films are best for extreme temperature (cold or hot) labeling applications. These include temporary labeling of metal surfaces, glass, and many more.
  • DK Paper labels are used for a variety of multipurpose applications depending on their size.
  • DK 2-Color paper labels are the most vulnerable to hot and cold temperatures. Therefore, you can use them for labeling files, moving boxes, and general-purpose labeling applications that don’t get exposed to extreme temperatures or prolonged temperatures beyond +25°C.

2. Test of Abrasion

Test of Abrasion

Abrasion resistance measures the extent up to which the label surface can withstand wear, tear and friction.

Learn More:

A 1-kilogram sanding device passed over the film, paper and 2-color paper labels show that labels were not affected by abrasive components. Thus concluding that DK labels are resistant to abrasion.

Test
DK Film
DK Paper Label
DK 2-Color Paper Label

Passed on a 1-kg sanding device

No signs of indentation

Shows slight indentation on the surface

Shows slight indentation on the surface

(a) DK Film

It was found that DK films can tolerate moderate abrasion.

(b) DK Paper & 2-Color Paper Label

DK paper labels have a protective coating on their surface that shields them against scratches and marks. However, the results also show that at high degrees of abrasion, slight appearances of scratches are formed on the surface without compromising its quality.

(c) Best Applications

  • Although they are not designed for abrasive applications, DK films are proven to be the best choice among the three when it comes to labeling applications that may be induced to abrasion. Examples include document and file labeling in machine shop offices, manufacturing industries, and many more.

3. Fade Resistance Outdoors

Fade Resistance Outdoors

We did point out before that DK labels aren’t the number 1 choice for prolonged outdoor applications. However, tests found out that yellow DK films are most suitable for harsh weather conditions compared with the other DK materials.

We’ll tell you exactly how we come up with this conclusion.

On a series of tests where DK films were placed outdoors for a month, results show the following.

Test
DK White Film
DK Yellow Film

1 month placed outdoors

Shows more faded text

Shows slight fading of text

(a) Best Applications

  • DK Yellow film labels stand better outdoors than their white film counterpart. Hence, yellow film labels are more applicable in labeling applications which require items to be placed or shipped outside.
Compatible Standard Address Labels [1-1/7″ x 3-1/2″]
Compatible Shipping Labels [4”x 6”]
Compatible Continuous Paper Labels [2-3/7″ x 100′]

4. Fade Resistance Indoors

Fade Resistance Indoors

The indoor resistance test, perfectly shows that Brother DK labels are suitable for prolonged indoor usage, resisting fading, heat, cold, and other forces of the indoor environment.

The test is carried out in 2 ways:

  • with the Brother DK labels attached to metal surfaces and contained within a fade-induced chamber. The temperature was controlled to +24±°C with 60% humidity. The test was conducted for 52 hours.
  • With DK labels exposed to the variable office condition for a year.

Results show the following:

Indoor Condition
Hrs
DK Film
DK Paper Label
DK 2-Color Paper Label

Stored Metal kept at +24±°C with a 60% humidity

52

No visible deterioration

Extremely slight fading

Slight fading in color

Office Environment

8,760

(a) Best Applications

  • This shows that DK films, paper, and 2-color paper labels are all ideals for indoor use, but prolonged exposure can fade paper labels in due time compared with film labels.

5. Water and Chemical Submersion Test

Water and Chemical Submersion Test

Brother DK film labels are more resistant to chemicals and water immersion than paper labels. Do take note however that they shouldn’t be generally used for labeling objects submerged in liquids. These tests are only conducted just so you know that they are indeed durable enough to withstand certain liquids when it’s spilled accidentally on them.

In this test, Brother DK labels (film, paper, and 2-color paper labels) were stuck with glass plates and submerged in water and chemicals for 2 hours.

Results show the following:

Liquid Type
Hours
DK Film
DK Paper Label
DK 2-Color Paper Label

Water

2

No visible deterioration

No visible deterioration

No visible deterioration

Hexane

2

No visible deterioration

No visible deterioration

No visible deterioration

Mineral Spirit

2

No visible deterioration

No visible deterioration

Faded Color

0.1 N Sodium Hydroxide

2

No visible deterioration

A little discoloration but insignificant

Faded Color

0.1 B Hydrochloric Acid

2

Slight discoloration

A little discoloration but insignificant

Faded Color

Toluene

2

Slight discoloration

A little discoloration but insignificant

Faded Color

Ethanol

2

Slight discoloration

Illegible

Illegible

Acetone

2

Illegible

Illegible

Illegible

Ethyl Acetate

2

Illegible

Illegible

Illegible

(a) Best Applications

  • This clearly shows that DK 2-color papers may not be meant for laboratories or applications requiring more intensive resistance to water and chemicals. The best DK labels for medical use are DK films or black on white paper labels.

6. Test Against Water and Chemical Abrasion

Test Against Water and Chemical Abrasion

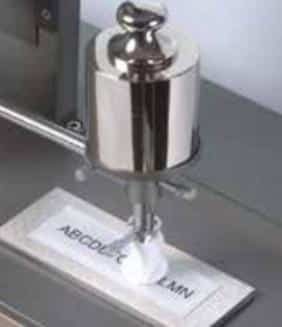

In this test, labels were stuck with glass plates with a 500g weight. Different chemicals infused in cloth were then wiped across the label surfaces 40 times.

The results show that DK films can withstand abrasion with different chemicals.

Liquid Type
DK Film
DK Paper Label
DK 2-Color Paper Label

Water

Hexane

Mineral Spirit

0.1 N Sodium Hydroxide

0.1 B Hydrochloric Acid

Toluene

Ethanol

Acetone

Ethyl Acetate

No visible deterioration

Illegible

No visible deterioration

No visible deterioration

Illegible

Illegible

No visible deterioration

No visible deterioration

Slight deterioration

Slight deterioration

Faded Color

No visible deterioration

No visible deterioration

Faded Color

Faded Color

No visible deterioration

Faded Color

No visible deterioration

No visible deterioration

Compatible Brother DK2225

: Continuous
: 1-1/2″ x 100′
: Brother DK Printer

7. Adhesive Test

Adhesive Test

Both Brother DK paper and film labels come with strong adhesives which provides excellent adhesion to various surfaces.

The test consists of affixing different DK labels onto different surfaces for 30 minutes. Then, each label was peeled off from the surface through the JIS Z0237 standard, a Japanese test standard for adhesive tapes. The adhesive strength was measured in Newtons or the amount of force required to peel off the label from the surface. The greater the number, the better are its adhesion properties.

Surface
Adhesive Strength in Newtons

Stainless Steel

PVC

Glass

Polyester Coated Wood

Acrylic

Polypropylene

12.1

12.7

11.2

11

11

10

(a) Best Applications

  • It clearly shows that all types of DK labels have strong and durable adhesives for many types of surfaces – glass, metal, plastic, or paper. Hence you can use them for signages, envelopes, barcodes, postages, and many more.

8. Curved Surfaces Tolerance

Curved Surfaces Tolerance

The curved surface test is essential for laboratory and healthcare facility labeling. In this test, it was proven that Brother DK film labels can be able to stick durably with cylindrical surfaces used in the medical industry.

The test consists of sticking different label types with a variety of test tube sizes for 30 minutes. Each label was then observed if they can be able remain secure on each curved surface.

Here are the results:

Type of Curved Surface
DK Film
DK Paper

Ø 10.6 mm Polystyrene

Ø 14.6 mm Polystyrene

Ø 17.7 mm Polystyrene

Ø 11.8 mm Glass

Ø 11.8 mm Polypropylene

5-10mm springs back

5-10mm springs back

(a) Best Applications

  • Another great example of DK films being the best label type for laboratory purposes is their ability to stay firmly attached to curved surfaces. Most laboratories and medical centers have curved glasses and surfaces that require constant labeling to sort blood samples, urine samples, and many more.

DK Label Features to Look At

So, now that you know the extremities of DK label tapes, we list down its features to help you in your buying decisions. These features are somewhat unique to the Brother DK label types compared with other models and brands.

1

Wide Assortment of Label Sizes Compared to Other Brands

Sizes range from 12mm to 103mm, so we can find a variety of options here.

2

They are Long-lasting

Brother DK label rolls are manufactured using classic, tried and tested label paper and durable plastic film available in clear transparent, white, and yellow.

3

They are Heat-Resistant

Ability to endure temperatures ranging from -80ºC to +60ºC.

4

Continuous and Die-cut

Brother DK label rolls are available in set-sized die-cut versions as well as continuous label rolls.

5

Choice of Strong-adhesive and Non-adhesive Labels

Non-adhesive labels are best used for name badges while self-adhesive rolls are typically suitable for labels that need to be repositioned such as in the case of file folders and signages.

6

High-Quality Products at Affordable Prices

DK Label and Tapes Available Today

Color, Material
DK Compatible Labels
Size

White, Paper

White, Paper

White, Paper

White, Paper

White, Paper

White, Paper

White, Paper

White, Paper

White, Paper

White, Film

White, Paper

Whiter, Paper

Clear, Film

White, Paper

White, Paper

White, Film

White, Film

White, Paper

White, Paper

White, Paper

White, Paper

Yellow, Film

White, Paper

Yellow, Paper, Removable

White, Paper

DK-1201

DK-1208

DK-1209

DK-1202

DK-1247

DK-1240

DK-1203

DK-1204

DK-1221

DK-1207

DK-1219

DK-1218

DK-2113

DK-2205

DK-2210

DK-2211

DK-2212

DK-2214

DK-2223

DK-2225

DK-2243

DK-2606

DK-4205

DK-4605

DK-N5224

1.14″ x 3.5″ (29 x 90 mm)

1.5” x 3.5” (38 x 90 mm)

2.43″ x 1.14″ (62 x 29 mm)

2.43″ x 4″ (62 x 100 mm)

4” x 6.5” (103 x 164 mm)

4” x 2” (102 x 51 mm)

2/3″ x 3.4″ (17 x 87 mm)

2/3″ x 2.125″ (17 x 54 mm)

1” x 1” (23 x 23 mm)

2.28” or 58mm diameter

0.5” or 12mm diameter

1” or 24mm diameter

2.4 in x 50 ft (62 mm x 15.2 m)

2.4 in x 100 ft (62mm x 30.4m)

1.1 in x 100 ft (29mm x 30.4m)

1.1 in x 50 ft (29mm x 15.2 m)

2.4 in x 50 ft (62 mm x 15.2 m)

0.47 in x 100 ft (12mm x 30.4m)

1.9 in x 100 ft (50mm x 30.4m)

1.5 in x 100 ft (38mm x 30.4m)

4 in x 100 ft (101mm x 30.4m)

2.4 in x 50 ft (62 mm x 15.2 m)

2.4 in x 100 ft. (62mm x 30.4m)

2.4 in x 100 ft (62mm x 30.4m)

2.1 in x 100ft (54mm x 30.4m)

Where to Use Brother DK Compatible Labels

Finally, with the features summarized above, we can now determine which DK models are perfect for your applications.

1.

Labeling File Folders

Narrow label sizes, such as the Brother DK-1204, are typically required for file folders. Its dimensions are only 2/3″ x 2.125″, making it a perfect fit for the labeling folder flap.

2.

Shipping Packages & Postages

If you’re in the shipping industry, the ideal labels are ones that come in standard sizes.  These labels are specifically made to match packing requirements. USPS mailing labels, for instance, must have black lettering on a white background.

The font should be San Serif and the content should be in uppercase. Font sizes such as Arial Veranda, Helvetica, Avant-Garde, Century Gothic, and Geneva are also recommended.  The nation, postal code, tracking number, package amount, date, origin address, weight, validation, and shipping address are all important pieces of information to provide.

As a result, you must pick label types that complement the digital printing and codes so that product information and source may be easily accessed. The following are some Brother DK labels that may be used as shipping labels:

3.

Labeling Storage Boxes

One of the clever ways to practice home and workplace management is to label storage boxes using Brother DK labels. When selecting the DK model for this application, keep the following in mind:

    • Permanent label adhesives, such as the DK-1202 or DK-1204, can be used to ensure that the labels stay there and don’t fall off.
    • If you wish to create customized storage box labels, you can use continuous label rolls like DK-2205 (2.5 in width).
    • Color-coded labels are available for more efficient organization of your possessions.  Yellow labels (DK-2606) and white labels (DK-4205) can be used for this purpose.  When moving, color-coded box labels with pre-printed tags are also a convenient way to mark boxes for easy unpacking.

4.

Envelope Identifiers

For envelope labeling, we suggest that you use paper labeling tapes with permanent adhesives for strong sticking qualities.

    • The DK-1204 is most appropriate for envelopes with narrower labels.
    • For large mailing labels that can accommodate complete addresses and more pertinent information, the DK-1209 is highly recommended.

5.

Name Badges

The peel-and-stick kind with no permanent adhesives is the most preferred label type for name cards and name badges. The purpose is to protect the delicate garments on which the name card will be adhered to.

    • The DK-4205, which is a detachable, continuous white paper label, best serves this kind of purpose.
    • Die-cut labels, such as DK-1202 or DK-1234, can also be used for size consistency. These feature sticky back panels, making them ideal for white paper name badges.
    • If you prefer non-adhesive name cards, you can use DK-N5224 continuous labels.

6.

Stamping Barcodes

Barcode labels are required for product tracking and inventory management throughout the supply chain. There are several barcode layouts and orientations available, as well as a large range of barcode labels available from the Brother DK series.

    • You may use the DK-1209 for Amazon barcodes.
    • The DK-1240 may be used to create large barcode labels.

Wrapping Up

Brother DK labels are definitely one of the best choices for selecting different label types used in the home, office, or business. In this article, we’ve discussed the extensive label tests performed to verify and know the maximum capabilities of DK labels for various situations.

Next is we determined the distinctive features of DK rolls that make them stand out in the market today. The third is we listed the available paper and film label product models. From here, we guided you on where can best use each model for specific applications such as postages, shipping, office organization, and many more.
